The Plastic Vacuum Forming Machine, or Egg Tray Vacuum Forming Machine, is a specialized equipment utilized for the production of egg trays. It employs the vacuum forming technique to shape heated plastic sheets into precise mold contours, offering efficiency, precision, and flexibility in the manufacturing process.
Product Description:
The Plastic Vacuum Forming Machine is a versatile and efficient equipment used in the manufacturing industry for shaping plastic sheets into various products. It employs the vacuum forming technique to create precise and customized molds.
TECHNICAL PARAMETER
Model | HEY05A |
Working Station | Forming, Stacking |
Applicable Material | PS, PET, PVC, ABS |
Max. Forming Area (mm2) | 1350*760 |
Min. Forming Area (mm2) | 700*460 |
Max. Formed Depth (mm) | 130 |
Sheet Width (mm) | 490~790 |
Sheet Thickness (mm) | 0.2~1.2 |
Accuracy of Sheet Transport (mm) | 0.15 |
Max. Working Cycle (cycles/minute) | 30 |
Stroke of Upper/Lower Mold (mm) | 250 |
Length of Upper/Lower Heater (mm) | 1500 |
Max. Capacity of Vacuum Pump (m3/h) | 200 |
Power Supply | 380V/50Hz 3 Phrase 4 Wire |
Dimension (mm) | 4160*1800*2945 |
Weight (T) | 4 |
Heating Power(kw) | 86 |
Power of Vacuum Pump (kw) | 4.5 |
Power of Sheet Motor (kw) | 4.5 |
Total Power(kw) | 100 |
Key Features
1. Vacuum Forming Technique: The machine utilizes the vacuum forming method to shape plastic sheets. It applies vacuum pressure to draw the heated plastic sheet onto the mold, ensuring accurate reproduction of mold contours and details.

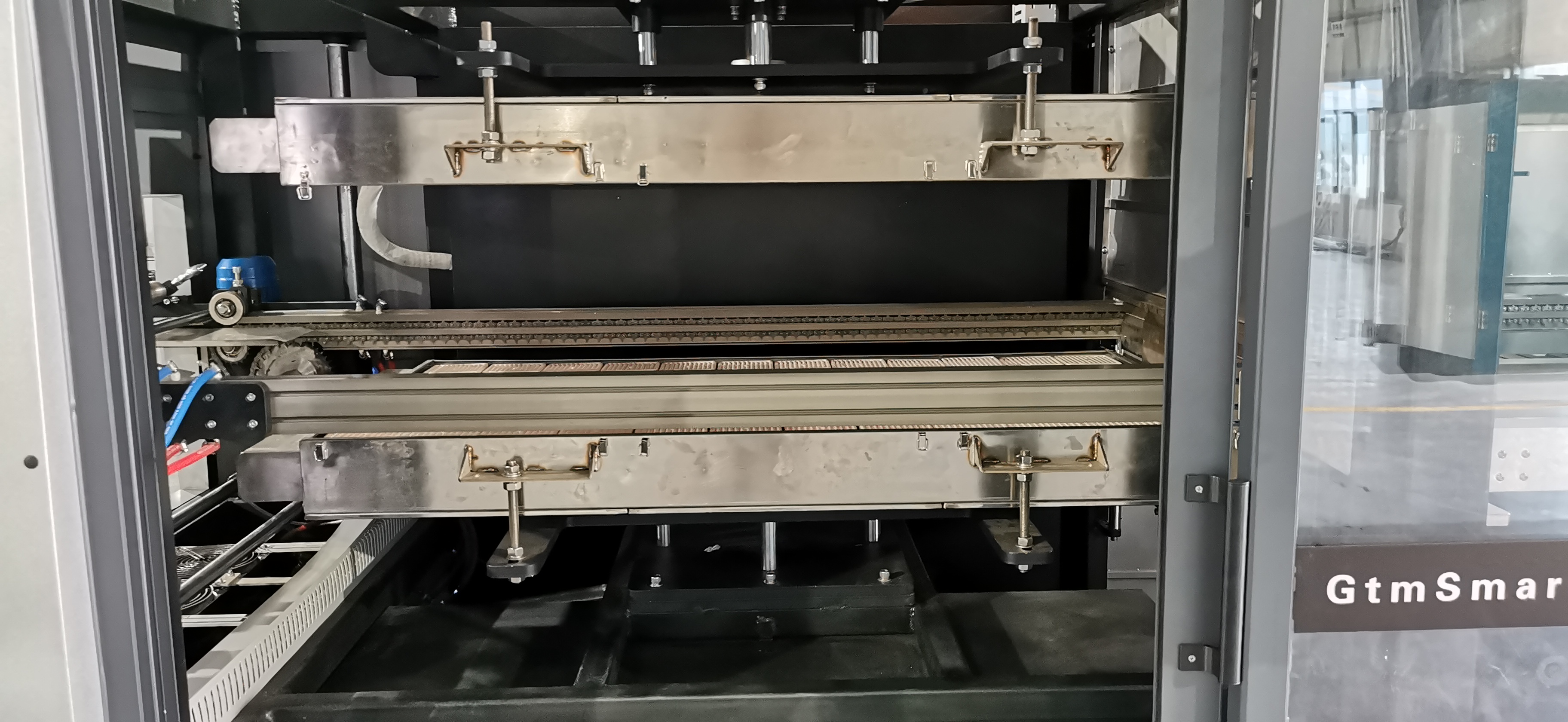

2. Heating System: The machine is equipped with a heating system that raises the temperature of the plastic sheet, making it pliable and ready for forming. This ensures optimal shaping and conformity to the mold.
3. Mold Table: The mold table securely holds the molds in place during the forming process. It provides stability and precision, ensuring consistent results.
4. Vacuum System: The machine features a powerful vacuum system that creates a strong suction force. This pulls the plastic sheet tightly onto the mold surface, resulting in uniform shaping and high-quality finished products.

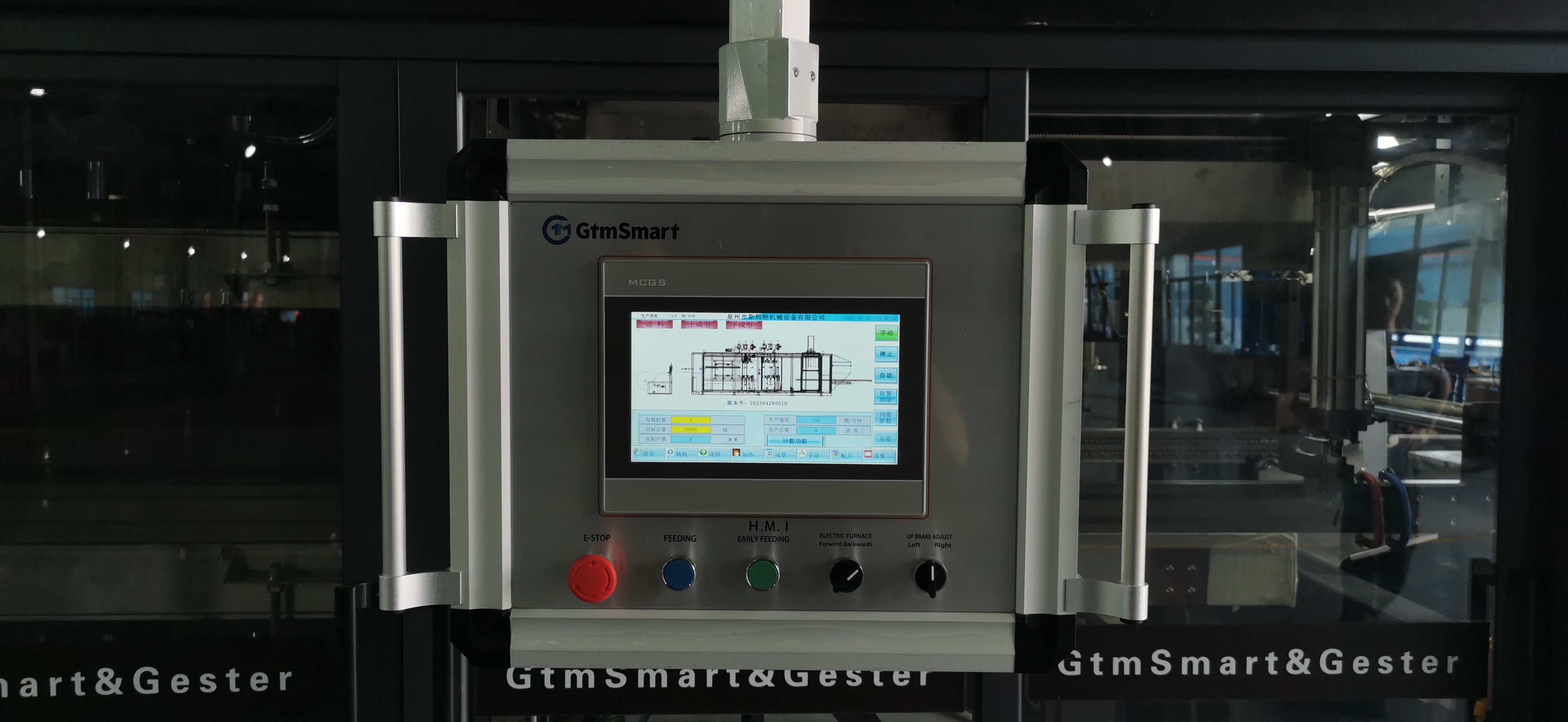

5. Control Panel: The control panel allows operators to adjust and monitor various parameters of the machine, such as temperature, heating time, vacuum strength, and cycle times. It offers user-friendly control and ensures precise operation.
6. Material Compatibility: The Plastic Vacuum Forming Machine can work with a wide range of plastic materials, including PS, PET, PVC, ABS, and more. This versatility allows for the production of diverse products with different material characteristics.
7. Customizable Molds: The machine supports the use of customized molds, enabling the production of unique and specific shapes according to customer requirements. It offers flexibility and creativity in product design.
8. High-Speed Operation: The machine operates at high speeds, contributing to increased productivity and reduced production time. It is designed for efficient mass production while maintaining consistent quality.
The Plastic Vacuum Forming Machine is a reliable and versatile solution for shaping plastic sheets into various products. It offers precise and consistent results, ease of operation, and cost-effective production capabilities, making it an essential asset for manufacturing industries.
Product Details
The Pet Thermoforming Machine Fruit Clamshell Food Container Making Machine is a versatile and efficient machine designed to quickly and easily create custom clamshell food containers.This Food Container Making Machine is suitable for PET, PVC, PS, PLA materials.
Technical Parameter
Model | HEY01-604 | HEY01-7860 |
|---|---|---|
Max.Forming Area | 600x400 | 780x60 |
Working Station | Forming, Cutting, Stacking | |
Applicable Material | PS, PET, HIPS, PP, PLA, etc | |
Sheet Width (mm) | 350-81 | |
Sheet Thickness (mm) | 0.2-1.5 | |
Max. Dia. Of Sheet Roll (mm) | 80 | |
Forming Mould Stroke(mm) | 120 for up mold and down mold | |
Power Consumption | 60-70KW/ | |
Max. Formed Depth (mm) | 100 | |
Cutting Mould Stroke(mm) | 120 for up mold and down mold | |
Max. Cutting Area | 600x400 | 780x600 |
Max. Mold Closing Force (T) | 5 | |
Speed (cycle/min) | Max 30 | |
Max. Capcity of Vacuum Pump | 200 m³/ | |
Cooling System | Water Cooling | |
Power Supply | 380V 50Hz 3 phase 4 wir | |
Max. Heating Power (kw) | 140 | |
Max. Power of Whole Machine (kw) | 160 | |
Machine Dimension(mm) | 9000*2200*269 | |
Sheet Carrier Dimension(mm) | 2100*1800*1550 | |
Weight of Whole Machine (T) | 12.5 |
Feature of Pet Thermoforming Machine
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Max.Forming Area: 600x400, 780x600mm, can be customized
3. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
4. Upper & lower heater, four sections heating.
5. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
6. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
7. Feeding width can be synchronously or independently adjusted in electrical way.
Product Details
The Pet Thermoforming Machine Fruit Clamshell Food Container Making Machine is a versatile and efficient machine designed to quickly and easily create custom clamshell food containers.This Food Container Making Machine is suitable for PET, PVC, PS, PLA materials.
Technical Parameter
Model | HEY01-604 | HEY01-7860 |
|---|---|---|
Max.Forming Area | 600x400 | 780x60 |
Working Station | Forming, Cutting, Stacking | |
Applicable Material | PS, PET, HIPS, PP, PLA, etc | |
Sheet Width (mm) | 350-81 | |
Sheet Thickness (mm) | 0.2-1.5 | |
Max. Dia. Of Sheet Roll (mm) | 80 | |
Forming Mould Stroke(mm) | 120 for up mold and down mold | |
Power Consumption | 60-70KW/ | |
Max. Formed Depth (mm) | 100 | |
Cutting Mould Stroke(mm) | 120 for up mold and down mold | |
Max. Cutting Area | 600x400 | 780x600 |
Max. Mold Closing Force (T) | 5 | |
Speed (cycle/min) | Max 30 | |
Max. Capcity of Vacuum Pump | 200 m³/ | |
Cooling System | Water Cooling | |
Power Supply | 380V 50Hz 3 phase 4 wir | |
Max. Heating Power (kw) | 140 | |
Max. Power of Whole Machine (kw) | 160 | |
Machine Dimension(mm) | 9000*2200*269 | |
Sheet Carrier Dimension(mm) | 2100*1800*1550 | |
Weight of Whole Machine (T) | 12.5 |
Feature of Pet Thermoforming Machine
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Max.Forming Area: 600x400, 780x600mm, can be customized
3. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
4. Upper & lower heater, four sections heating.
5. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
6. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
7. Feeding width can be synchronously or independently adjusted in electrical way.
Product Details
The Pet Thermoforming Machine Fruit Clamshell Food Container Making Machine is a versatile and efficient machine designed to quickly and easily create custom clamshell food containers.This Food Container Making Machine is suitable for PET, PVC, PS, PLA materials.
Technical Parameter
Model | HEY01-604 | HEY01-7860 |
|---|---|---|
Max.Forming Area | 600x400 | 780x60 |
Working Station | Forming, Cutting, Stacking | |
Applicable Material | PS, PET, HIPS, PP, PLA, etc | |
Sheet Width (mm) | 350-81 | |
Sheet Thickness (mm) | 0.2-1.5 | |
Max. Dia. Of Sheet Roll (mm) | 80 | |
Forming Mould Stroke(mm) | 120 for up mold and down mold | |
Power Consumption | 60-70KW/ | |
Max. Formed Depth (mm) | 100 | |
Cutting Mould Stroke(mm) | 120 for up mold and down mold | |
Max. Cutting Area | 600x400 | 780x600 |
Max. Mold Closing Force (T) | 5 | |
Speed (cycle/min) | Max 30 | |
Max. Capcity of Vacuum Pump | 200 m³/ | |
Cooling System | Water Cooling | |
Power Supply | 380V 50Hz 3 phase 4 wir | |
Max. Heating Power (kw) | 140 | |
Max. Power of Whole Machine (kw) | 160 | |
Machine Dimension(mm) | 9000*2200*269 | |
Sheet Carrier Dimension(mm) | 2100*1800*1550 | |
Weight of Whole Machine (T) | 12.5 |
Feature of Pet Thermoforming Machine
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Max.Forming Area: 600x400, 780x600mm, can be customized
3. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
4. Upper & lower heater, four sections heating.
5. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
6. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
7. Feeding width can be synchronously or independently adjusted in electrical way.
Product Details
The Pet Thermoforming Machine Fruit Clamshell Food Container Making Machine is a versatile and efficient machine designed to quickly and easily create custom clamshell food containers.This Food Container Making Machine is suitable for PET, PVC, PS, PLA materials.
Technical Parameter
Model | HEY01-604 | HEY01-7860 |
|---|---|---|
Max.Forming Area | 600x400 | 780x60 |
Working Station | Forming, Cutting, Stacking | |
Applicable Material | PS, PET, HIPS, PP, PLA, etc | |
Sheet Width (mm) | 350-81 | |
Sheet Thickness (mm) | 0.2-1.5 | |
Max. Dia. Of Sheet Roll (mm) | 80 | |
Forming Mould Stroke(mm) | 120 for up mold and down mold | |
Power Consumption | 60-70KW/ | |
Max. Formed Depth (mm) | 100 | |
Cutting Mould Stroke(mm) | 120 for up mold and down mold | |
Max. Cutting Area | 600x400 | 780x600 |
Max. Mold Closing Force (T) | 5 | |
Speed (cycle/min) | Max 30 | |
Max. Capcity of Vacuum Pump | 200 m³/ | |
Cooling System | Water Cooling | |
Power Supply | 380V 50Hz 3 phase 4 wir | |
Max. Heating Power (kw) | 140 | |
Max. Power of Whole Machine (kw) | 160 | |
Machine Dimension(mm) | 9000*2200*269 | |
Sheet Carrier Dimension(mm) | 2100*1800*1550 | |
Weight of Whole Machine (T) | 12.5 |
Feature of Pet Thermoforming Machine
1. Mechanical, pneumatic and electrical combination, all working actions are controlled by PLC. Touch screen makes the operation convenient and easy.
2. Max.Forming Area: 600x400, 780x600mm, can be customized
3. Servo motor feeding, feeding length can be step-less adjusted. High speed and accurate.
4. Upper & lower heater, four sections heating.
5. Heater with intellectual temperature control system,which has high precision, uniform temperature, won’t be effected by outer voltage.Low power consumption (energy saving 15%), ensure the longer service life of heating furnace.
6. Forming and cutting unit mold open and close controlled by servo motor, products automatically count.
7. Feeding width can be synchronously or independently adjusted in electrical way.
