Kev tshaj lij chaw tsim khoom ntawm cov tshuab thermoforming.
Kev tshawb fawb thiab kev loj hlob ntawm Lub Hoobkas Nqe Tsis Siv Neeg Yas Khob Khob Thermoforming Tshuab tsis tsuas yog tshawb xyuas qhov kev xav tau tiag tiag ntawm cov neeg siv khoom lub hom phiaj, tab sis kuj sib txuas nws tus kheej cov peev txheej zoo tshaj plaws.Nws tuaj yeem siv dav rau Yas Thermoforming Machine.
Khoom Muag Khoom
| Daim ntawv thov |
Lub khob ua tshuab yog tsim los ntawm ntau yam ntim yas ( jelly khob, khob haus, ntim ntim, thiab lwm yam) nrog cov ntawv thermoplastic, xws li PP, PET, PE, PS, HIPS, PLA, thiab lwm yam.
| Tsim chaw nres tsheb |
1. Standard square raj ncej nrog 100 * 100, pwm yog casting steel thiab sab sauv pwm yog tsau los ntawm txiv ntseej.
2. Qhib thiab kaw pwm uas tau tsav los ntawm eccentric iav txuas rod. Tsav lub zog los ntawm 15KW (Nyiv Yaskawa) servo lub cev muaj zog, American KALK Reducer, lub ntsiab axis siv HRB bearings.
3. Yas khob Thermoforming Tshuab Lub ntsiab pneumatic siv SMC (Nyiv) sib nqus.
4. Sheet feeding device nrog planetary iav reducer lub cev muaj zog, 4.4KW Siemens servo maub los.
5. Stretching ntaus ntawv siv 11KW Siemens servo.
6. Lubrication ntaus ntawv yog tag nrho tsis siv neeg.
7. Caterpillars txais yuav tag nrho cov qauv, nrog cov cuab yeej txias thiab tuaj yeem kho daim ntawv dav.
8. Lub tshuab cua sov siv Tuam Tshoj ceramic far-infrared tso cua sov, stainless hlau sab sauv thiab nqes cua sov rauv, lub cua sov sab saud nrog 12 pcs cua sov ncoo vertically thiab 8 pcs cua sov ncoo kab rov tav, down heater nrog 11 pcs cua sov ncoo vertically thiab 8 pcs cua sov ncoo horizontally. (kev qhia tshwj xeeb ntawm lub tshuab cua sov yog 8.5mm * 245mm); Hluav taws xob lub tshuab hluav taws xob thawb tawm siv 0.55KW cab iav reducer thiab pob ntsia hlau, uas ruaj khov dua thiab tseem tiv thaiv lub tshuab cua sov.
9. Khob Thermoforming Tshuab Cua pom siv triplet, tshuab lub khob tuaj yeem kho airflow.
10. Folding pwm yog muaj cov phaj sab sauv, hloov tau nruab nrab phaj thiab 4 tus ncej nrog cov tawv tawv chrome plating 45 #.
11. Eccentric yog kev tsim kho ntawm kev sib txuas pas nrig pwm, nrog kev khiav ntau ≤ 240mm.
12. Hluav taws xob cua sov rauv tuaj yeem txav mus rau kab rov tav thiab ntsug dawb los ntawm kev qhia-rail los ntawm Hiwin Taiwan.
13. Toping khob yog tswj los ntawm AirTAC (Taiwan) lub tog raj kheej.
Khib nyiab Edge Winding Device
1. On-line winding
2. Reducer nrog 0.75KW lub cev muaj zog (1pc)
| Khoom Paramenters |
Qauv | HLO 12-6835 | HLO 12-7842 |
Max.Forming cheeb tsam (mm2) | 680 * 350 hli | 7 80x420 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 380-810 : kuv | |
Phaj Thickness (mm) | 0.3-2.0 | |
Max. Qhov tob (mm) | 200 | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Pwm Stroke (mm) | 250 | |
Ntev ntawm lub tshuab cua sov (mm) | 3 010 | |
Ntev ntawm lub tshuab cua sov (mm) | 2760 ib | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max. 32 | |
Qhov tseeb ntawm Sheet Transport (mm) | 0.15 | |
Fais fab mov | 380V 50Hz 3 theem 4 xaim | |
Lub zog cua sov (kw) | 135 | |
Tag nrho lub zog (kw) | 165 | |
Tshuab Dimension (mm) | 5375 * 2100 * 3380 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 10 | |

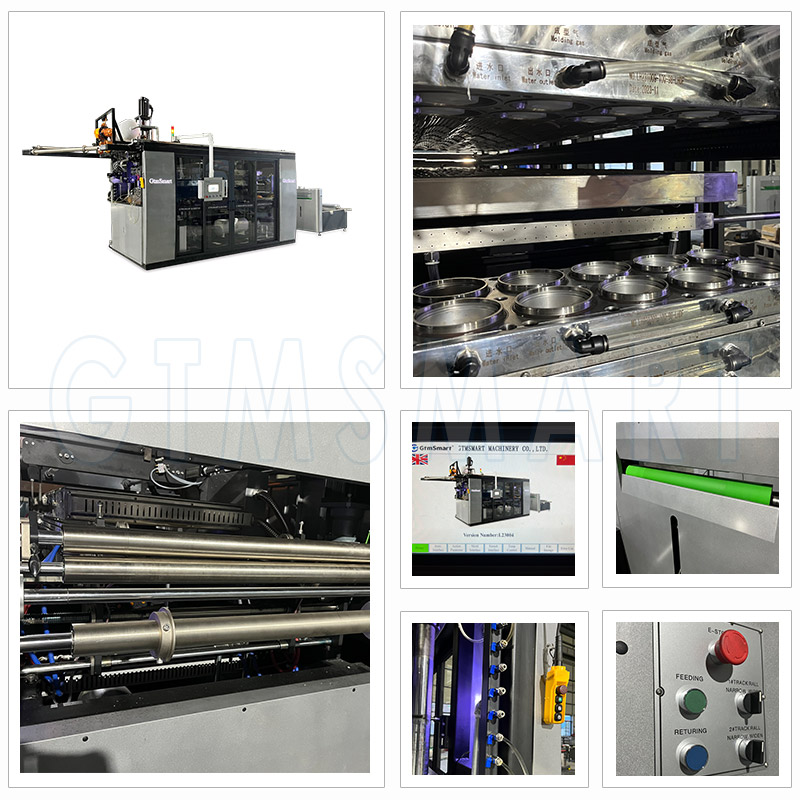

| Khoom duab |
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog ntau yam thiab siv tau lub tshuab tsim los sai thiab yooj yim tsim cov khoom noj khoom haus clamshell.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 | |
Daim ntawv Carrier Dimension (mm) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum& qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse tswj qhov kub thiab txias, uas muaj qhov ua tau zoo, qhov ntsuas kub tsis sib xws, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Tsawg zog siv hluav taws xob (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav pwm pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
