Technology yeej ib txwm ua ib qho cuab yeej tseem ceeb los txhawb txoj kev tsim khoom. Hauv peb lub tuam txhab, peb siv cov thev naus laus zis tshiab uas tau hloov kho kom pom thiab lav Tshiab Tsis Siv Neeg Siv Khoom Siv Yas Dej Khov Khob Khob Khob Khob Lub Cav Ua Haujlwm Zoo.Thaum siv rau thaj chaw ntawm cov tshuab yas Thermoforming, cov khoom tuaj yeem muab tawm nws cov txiaj ntsig zoo tshaj plaws. .
Biodegradable Plastic Cup Ua Tshuab

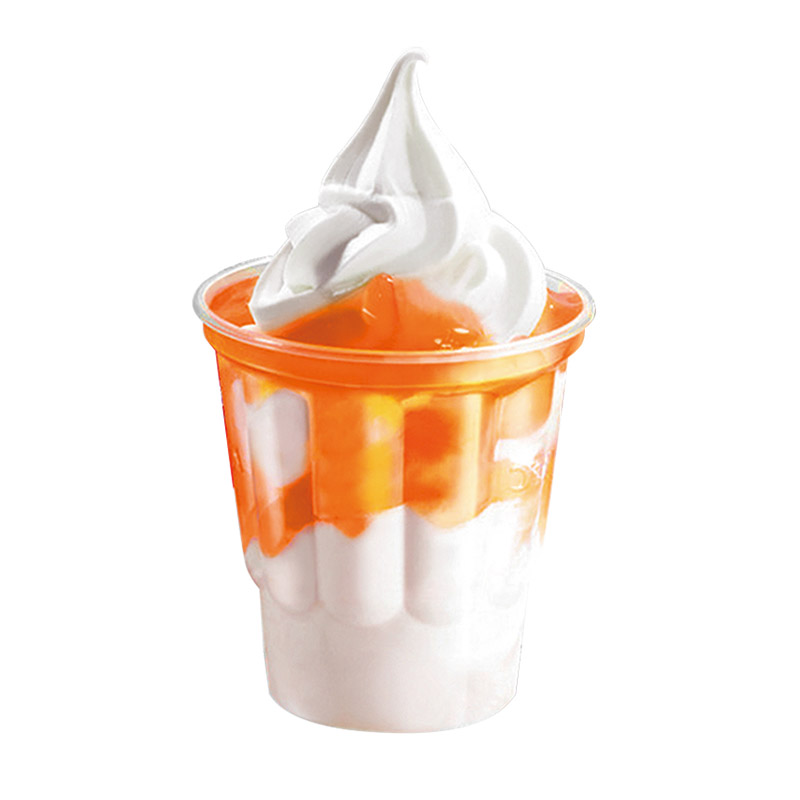

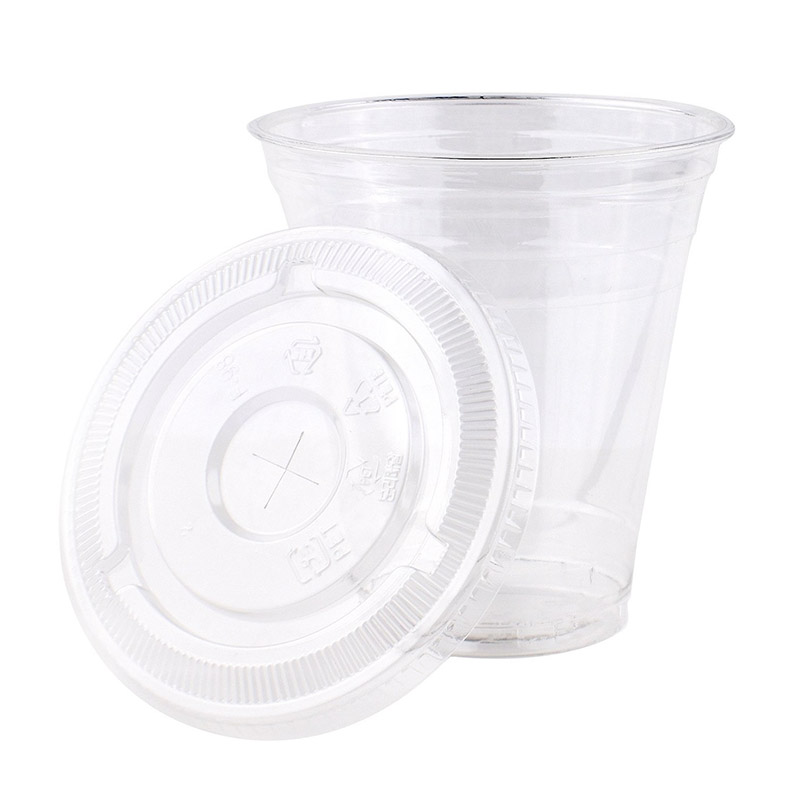

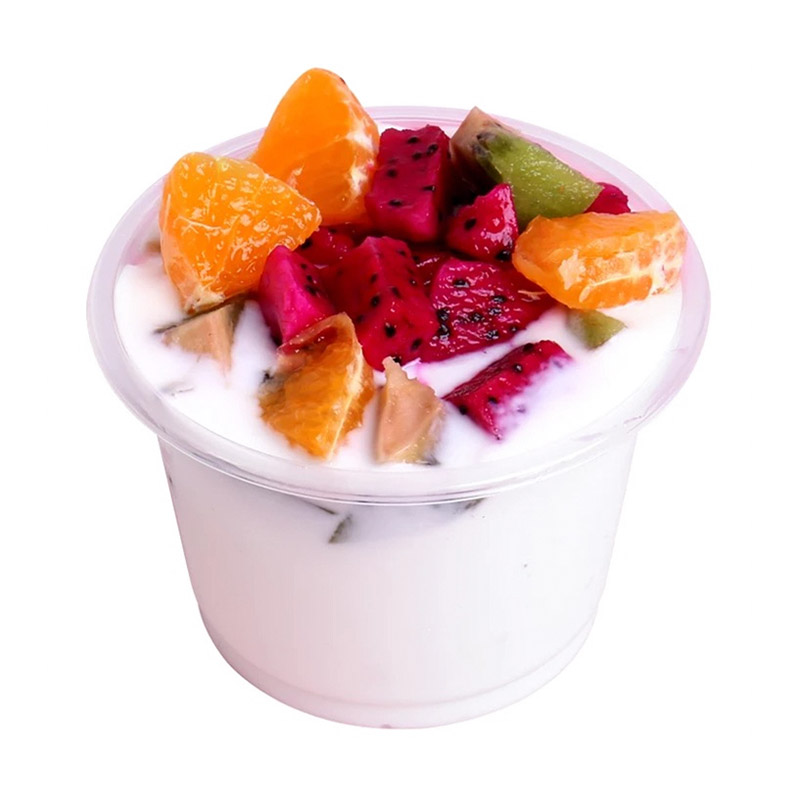

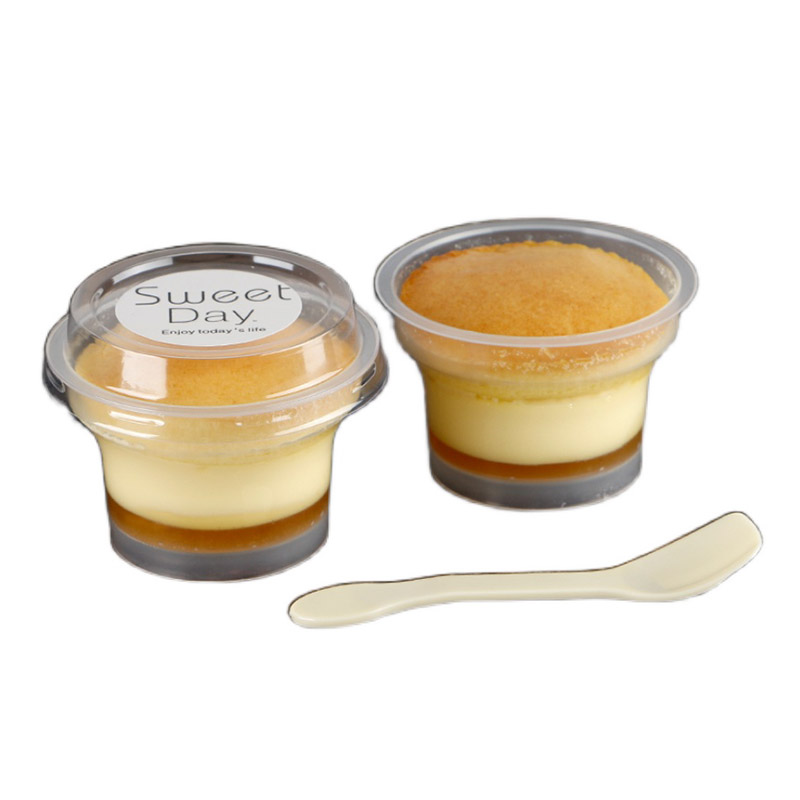

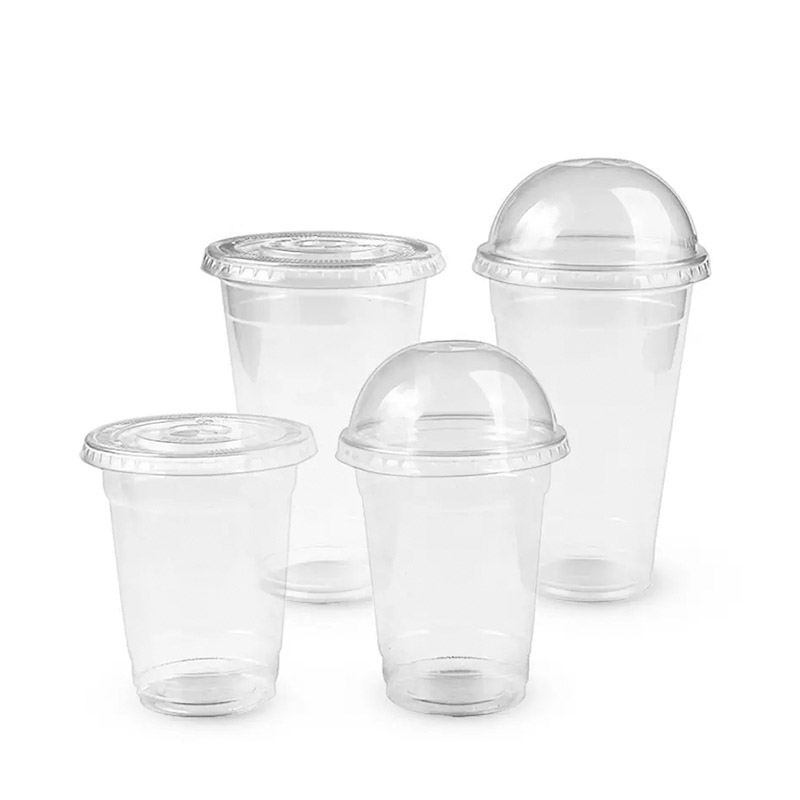

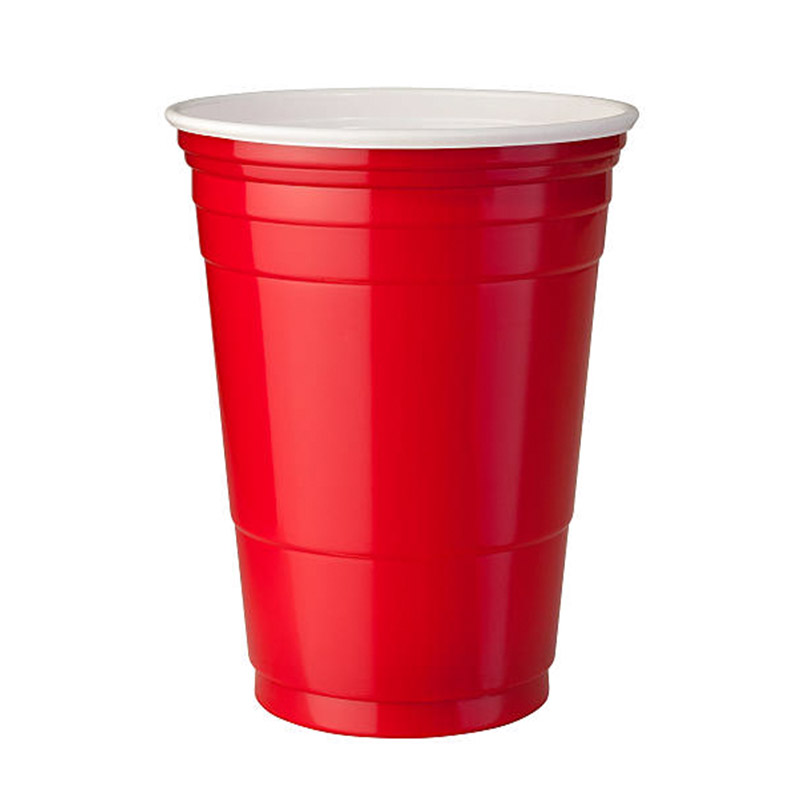

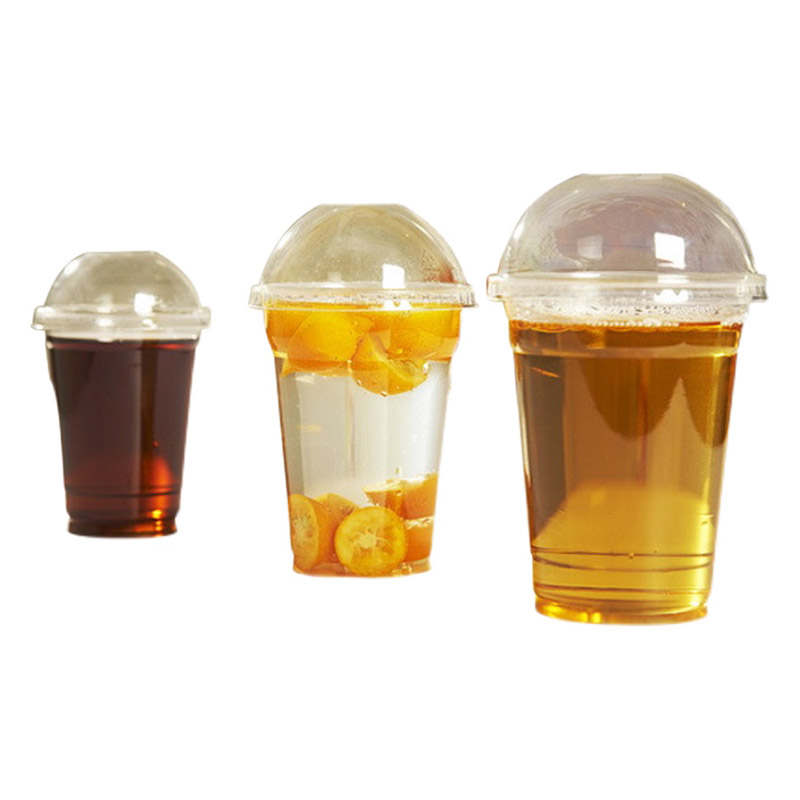

Qhov no Biodegradable Disposable Yas Khob Khob Ua Tshuab feem ntau yog tsim los ntawm ntau lub thawv yas ( jelly khob, khob haus, ntim ntim, thiab lwm yam) nrog cov ntawv thermoplastic, xws li PP, PET, PE, PS, HIPS, PLA, thiab lwm yam.
Yas khob Ua Tshuab Daim Ntawv Thov
1. Standard square tube ncej nrog 100 * 100, pwm yog casting steel thiab sab sauv pwm yog tsau los ntawm txiv ntseej.
2. Qhib thiab kaw pwm tsav los ntawm eccentric iav txuas pas nrig. Tsav lub zog los ntawm 15KW servo lub cev muaj zog.
3. Lub ntsiab pneumatic siv SMC (Nyiv) sib nqus.
4. Sheet feeding device nrog planetary iav reducer lub cev muaj zog, 4.4KW Siemens servo maub los.
5. Stretching ntaus ntawv siv 11KW Siemens servo.
6. Lubrication ntaus ntawv yog tag nrho tsis siv neeg.
7. Caterpillars txais yuav tag nrho cov qauv, nrog cov cuab yeej txias thiab tuaj yeem kho daim ntawv dav.
8. Lub tshuab cua sov siv Tuam Tshoj ceramic far-infrared tso cua sov, stainless hlau sab sauv thiab nqes cua sov rauv, lub cua sov sab saud nrog 12 pcs cua sov ncoo vertically thiab 8 pcs cua sov ncoo kab rov tav, down heater nrog 11 pcs cua sov pads vertically thiab 8 pcs cua sov ncoo horizontally ntawm 45mm); Lub tshuab hluav taws xob hluav taws xob thawb tawm siv 0.55KW worm iav reducer thiab pob ntsia hlau, uas ruaj khov dua thiab tseem tiv thaiv lub tshuab cua sov.
9. Huab cua lim siv triplet, tshuab lub khob tuaj yeem kho cua ntws.
10. Folding pwm yog muaj cov phaj sab sauv, hloov tau nruab nrab phaj thiab 4 tus ncej nrog cov tawv tawv chrome plating 45 #.
11. Eccentric yog kev tsim kho ntawm kev sib txuas pas nrig pwm, nrog khiav ntau yam ≤ 240mm.
12. Hluav taws xob cua sov rauv tuaj yeem txav mus rau kab rov tav thiab ntsug dawb los ntawm kev qhia-rail los ntawm Hiwin Taiwan.
13. Toping khob yog tswj los ntawm AirTAC (Taiwan) lub tog raj kheej.
Khib nyiab Edge Winding Device
1. On-line winding
2. Reducer nrog 0.75KW lub cev muaj zog (1pc)
Qauv | HLO 12-6835 | HLO 12-7842 |
Max.Forming cheeb tsam (mm2) | 680 * 350 hli | 7 80x420 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 380-810 : kuv | |
Phaj Thickness (mm) | 0.3-2.0 | |
Max. Qhov tob (mm) | 200 | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Pwm Stroke (mm) | 250 | |
Qhov ntev ntawm lub tshuab cua sov (mm) | 3 010 | |
Qhov ntev ntawm lub tshuab cua sov (mm) | 2760 ib | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max. 32 | |
Qhov tseeb ntawm Sheet Transport (mm) | 0.15 | |
Fais fab mov | 380V 50Hz 3 theem 4 xaim | |
Lub zog cua sov (kw) | 135 | |
Tag nrho lub zog (kw) | 165 | |
Tshuab Dimension (mm) | 5375 * 2100 * 3380 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 10 | |
Lub unwinder tau nqa los ntawm hluav taws xob.
lt tuaj yeem kho qhov kub thiab txias sai thiab tswj tau qhov kub thiab txias uas tuaj yeem txuag hluav taws xob.
Yooj yim rau kev khiav lag luam, tag nrho cov kev hloov hluav taws xob tuaj yeem ua tiav ntawm lub vijtsam kov.
Aluminium alloy tuaj yeem ua kom cov cua txias zoo dua qhov dav ntawm cov saw hlau, pem hauv ntej lossis rov qab raug kho los ntawm lub cev muaj zog.
Qhov kev teeb tsa ntawm lub txee hluav taws xob yog qhov tsim nyog, thiab nws yooj yim los tswj.
Nws tuaj yeem xaiv rau servo lub cev muaj zog-tsav hom thiab muaj lub zog muaj zog. Thiab lub servo stretch yuav ua rau cov khoom zoo sib xws thiab cov pwm ua kom zoo dua qub. Lub tshuab lubrication tuaj yeem ua kom lub neej ntev ntawm lub tshuab.
PVC khob
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog lub tshuab muaj ntau yam thiab siv tau zoo tsim kom sai thiab yooj yim tsim cov thawv ntim khoom noj khoom haus.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 | |
Daim ntawv Carrier Dimension (mm) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Tsiaj Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum& qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse kub tswj qhov system, uas muaj qhov siab tshaj plaws, qhov kub thiab txias, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Kev siv hluav taws xob tsawg (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav cov pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
