Tshiab Tsim Nws Pib Yas Phaj Siab Thermoforming Tshuab txais ntau yam thev naus laus zis hauv kev tsim khoom.Qhov kev lag luam zoo tawm tswv yim thiab cov neeg siv khoom lub koob npe nrov tau tso cai rau nws sawv tawm hauv kev sib tw ua lag luam hnyav thiab zoo teb rau cov kev hloov pauv hauv kev lag luam.Dab tsi yog cov kev pabcuam customized. muaj.

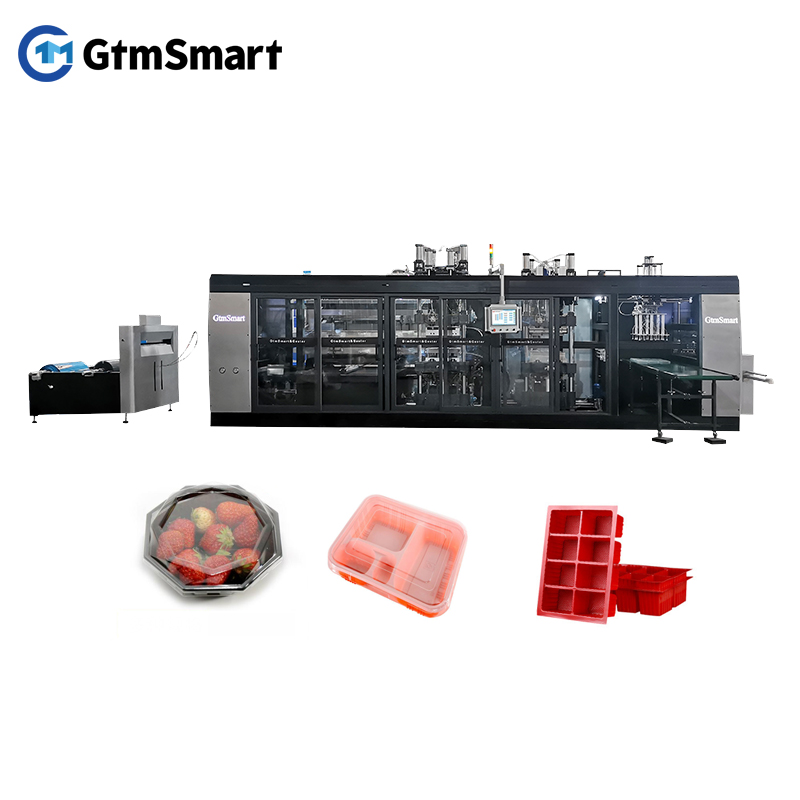

Tshiab Tsim Nws Pib Yas Phaj Siab Thermoforming Tshuab
A. Kev thov khoom
Qhov no Tshiab Tsim Nws Pib Yas Phaj Siab Thermoforming Tshuab yog tsim los ntawm ntau hom yas ntim khoom (qe tais, ntim txiv hmab txiv ntoo, ntim khoom noj, ntim ntim, thiab lwm yam) nrog cov ntawv thermoplastic, xws li PS, PET, HIPS, PP, PLA, thiab lwm yam.
B. Khoom nta
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC.
Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Siab Thiab/los yog nqus tsev tsim.
3. Upper thiab down pwm tsim.
4. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
5. Saum & qis cua sov, plaub ntu cua sov.
6. Rhaub nrog kev txawj ntse kub tswj qhov system, uas muaj precision siab, tsis zoo kub, yuav tsis
raug cuam tshuam los ntawm sab nraud voltage. Kev siv hluav taws xob tsawg (lub zog txuag 15%), xyuas kom lub neej ua haujlwm ntev dua cua sov cua sov.
7. Kev tsim thiab txiav pwm pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam suav nrog.
8. Cov khoom lag luam tau muab tso rau hauv qab.
9. Cov ntaub ntawv memorization muaj nuj nqi.
10. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
11. Lub rhaub yuav cia li thawb tawm thaum daim ntawv dhau lawm.
12. Nws pib dov daim ntawv thauj khoom, txo cov haujlwm ua haujlwm.
C. Khoom Parameter
Hom | HLO 01-6040 | HLO 01-7860 |
Max.Forming Area | 600 x 400 | 7 80x600 |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70 KW / H | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / h | |
Txias System | Dej Txias | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
D.Product Display
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog lub tshuab muaj ntau yam thiab siv tau zoo tsim kom sai thiab yooj yim tsim cov thawv ntim khoom noj khoom haus.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum & qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse kub tswj qhov system, uas muaj qhov siab tshaj plaws, qhov kub thiab txias, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Kev siv hluav taws xob tsawg (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav pwm pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
