Peb Cov Chaw Nres Tsheb Cua Siab Yas Biscuit Box Tais Thermoforming Tshuab tau dhau los ntawm ntau qhov kev sim thiab tau txais kev tso cai cuam tshuam & export ntawv pov thawj. Nws muaj qhov tsim nyog-tsim qauv thiab zoo li, nyiam ntau cov xim thiab ua tus qauv hauv kev lag luam thiab. Tsis tas li ntawd, GTMMART muaj qee cov yam ntxwv zoo heev uas tuaj yeem pab cov neeg siv khoom yeej tau txais txiaj ntsig tsis txaus ntseeg thiab txuag tau nyiaj ntau.
| Daim ntawv thov |
Lub tshuab Thermoforming no siv cov txheej txheem ntawm lamination cua sov, txais cov cuab yeej ntawm kev txav zaj duab xis xuas nrig ntaus, tsis muaj kev ua qias tuaj nruab nrab, qib siab huv, kev nyab xeeb siab coefficient, txuag zog, cov cuab yeej teeb tsa lub siab zoo / tsis zoo siab / tsis zoo siab tsis siv neeg txoj kev tsim, txiav, manipulator tuav pawg suav hauv cov kab ntau lawm kom tiav tsis tu ncua, tsis siv neeg conveying khoom.
| Feature |
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC.
Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Siab Thiab/los yog nqus tsev tsim.
3. Upper thiab down pwm tsim.
4. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
5. Sab saum toj & qis cua sov, plaub ntu cua sov.
6. Rhaub nrog kev txawj ntse kub tswj qhov system, uas muaj siab precision, tsis zoo kub, yuav tsis
raug cuam tshuam los ntawm sab nraud voltage. Kev siv hluav taws xob tsawg (kev txuag hluav taws xob 15%), xyuas kom lub neej ntev ntawm cov cua sov cua sov.
7. Kev tsim thiab txiav pwm pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
8. Cov khoom lag luam tau muab tso rau hauv qab.
9. Cov ntaub ntawv memorization muaj nuj nqi.
10.Feeding dav yuav synchronously los yog nws tus kheej hloov nyob rau hauv hluav taws xob txoj kev.
11.Heater yuav cia li thawb tawm thaum daim ntawv dhau lawm.
12. Nws pib dov daim ntawv thauj khoom, txo cov haujlwm ua haujlwm.
| Ntsiab Specification |
Hom | HLO 01-6040 | HLO 01-7860 |
Max.Forming Area | 600 x 400 | 7 80x600 |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70 KW / H | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / h | |
Txias System | Dej Txias | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
| Khoom duab |
1.Nws yog tsav los ntawm kev txo lub cev muaj zog, daim ntawv pub mis yog tswj los ntawm infrared sensor kom paub tseeb tias daim ntawv yuav tsis poob tawm ua ntej nws thauj mus rau cov saw khiav mus rau lwm yam kab mob;
3.It yog nruab nrog pneumatic pub khoom, yooj yim rau kev khiav lag luam.
1.Precise kub tswj
2. Txhim kho ntau lawm efficiency
3. Txo kev siv hluav taws xob

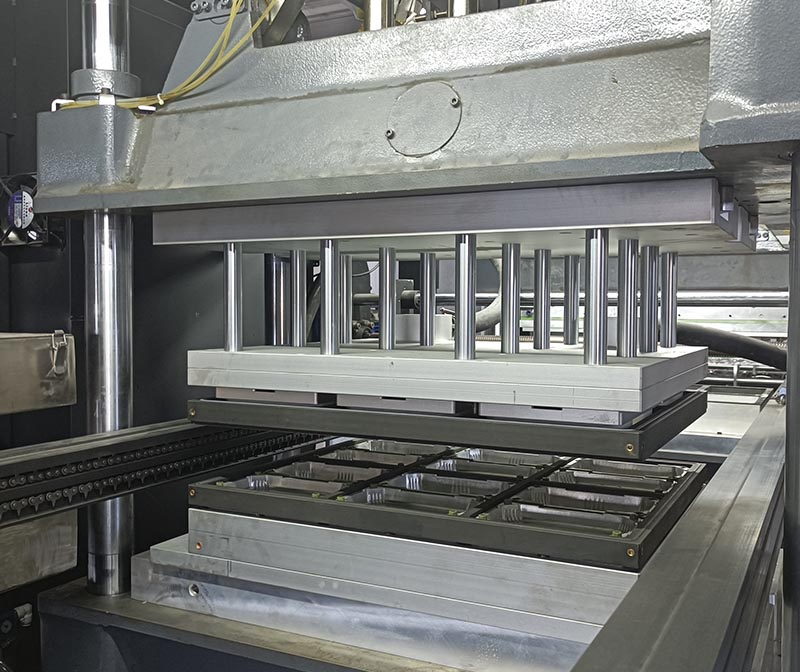

1.Nws siv Delta servo tsav, kev ua haujlwm siab, kev pib ua haujlwm zoo, tuaj yeem hloov kho ncaj qha los ntawm servo lub cev muaj zog tig txoj hauj lwm lub kaum sab xis los tswj cov kev tsis sib haum;
2.Quick pwm installation mechanism, configured nrog directional positioning slots ua txoj hauj lwm ntawm kev hloov thiab debugging ua yooj yim, steel riam cua sov pwm clamping ntaus ntawv muab pneumatic thiab mechanism kom nws yog haum rau ntau hom pwm;
Chaw nres tsheb txiav
1.Cutting tsav adopts Delta high-power servo tsav uas nruab nrog domestic hom customized ceev reducer.
Kev sib kis tau ruaj khov, muaj peev xwm tshaj qhov muaj zog thiab txoj haujlwm yog qhov tseeb.
2.Qhov kev hloov kho ntawm lub rooj pwm tuaj yeem ua haujlwm los ntawm PLC kov npo. Nruab nrog cov khoom siv tiv thaiv thermal tiv thaiv kev ua haujlwm tsis zoo.
3. Cov riam hlau
1.Lub stacking thiab suav chaw nres tsheb txais Delta servo tsav tsav. Aluminium alloy kis rack ua raws li ergonomic.
2.Conveying method adopts zaus ceev reducer uas tuaj yeem kho qhov ceev thaum lub sij hawm conveying txheej txheem thiab xyuas kom meej qhov siab stacking nyob rau hauv cov txheej txheem coveying yog du.
Peb Lub Chaw Nres Tsheb Thermoforming nta ib chav tsev winding nrog lub zog torque kom zoo khaws cov ntawv pov tseg thiab cua rau hauv yob, uas tuaj yeem yooj yim tshem tawm thaum kawg ntawm kev tsim khoom.
Qhov kev tswj xyuas cov khib nyiab siab heev no txhim kho kev ua haujlwm zoo thiab kev huv, ua rau ntau lub chaw nres tsheb thermoforming yog qhov kev xaiv zoo tshaj plaws rau kev tsim khoom zoo thiab ruaj khov.

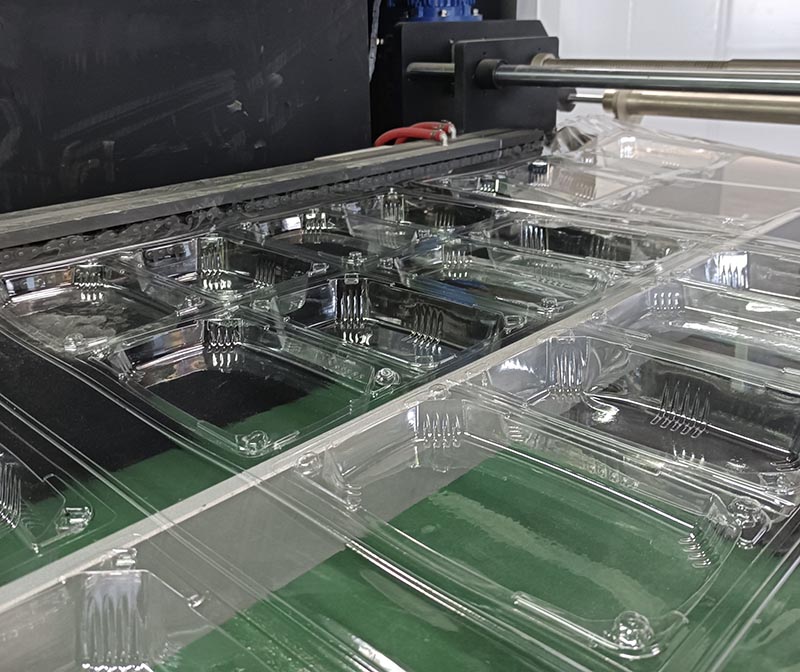

Khoom Paub meej

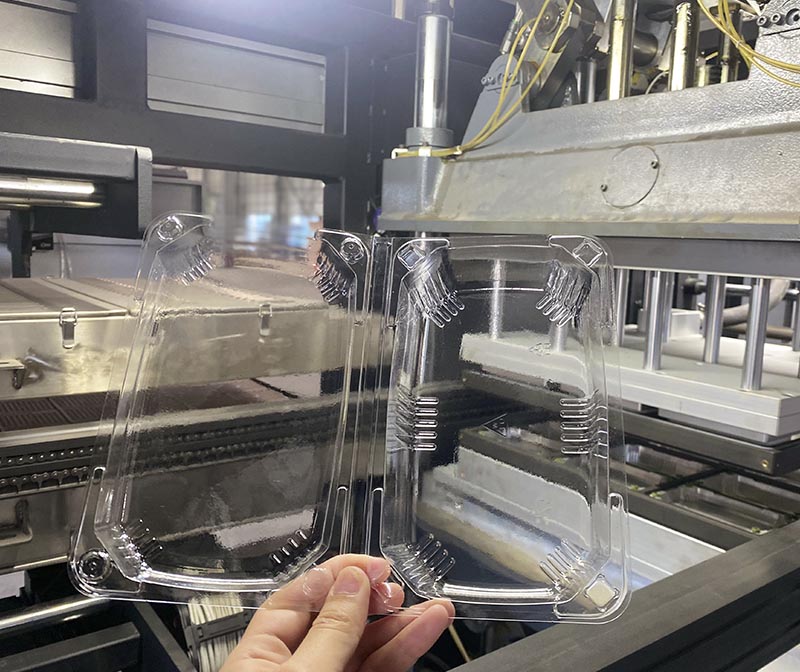

Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog lub tshuab muaj ntau yam thiab siv tau zoo tsim kom sai thiab yooj yim tsim cov thawv ntim khoom noj khoom haus.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |

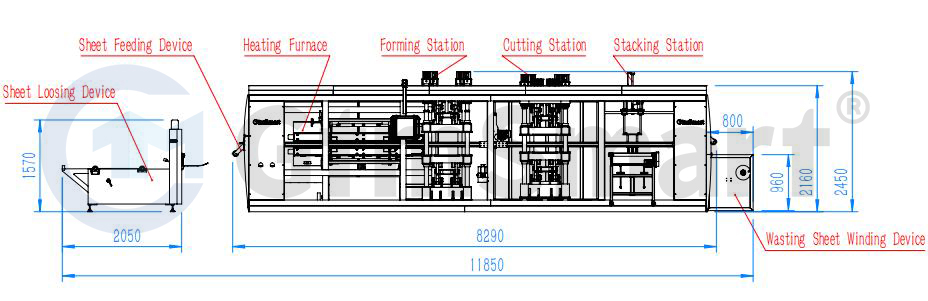

Tshuab Dimension (mm) | 9000 * 2200 * 269 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum & qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse kub tswj qhov system, uas muaj qhov siab tshaj plaws, qhov kub thiab txias, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Kev siv hluav taws xob tsawg (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav pwm pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
