Kev tshaj lij chaw tsim khoom ntawm cov tshuab thermoforming.
Lus
Kev tshaj lij chaw tsim khoom ntawm cov tshuab thermoforming.
Automatic Disposable Yas Zaub Thawv Ua Tshuab Thermoforming Tshuab tau txais cov lus pom zoo los ntawm kev ua lag luam. Qhov kev lees paub zoo ntawm nws tuaj yeem ua tiav nrog daim ntawv pov thawj.Ntxiv mus, los saib xyuas cov kev xav tau sib txawv, cov khoom tsim kho yog muab.

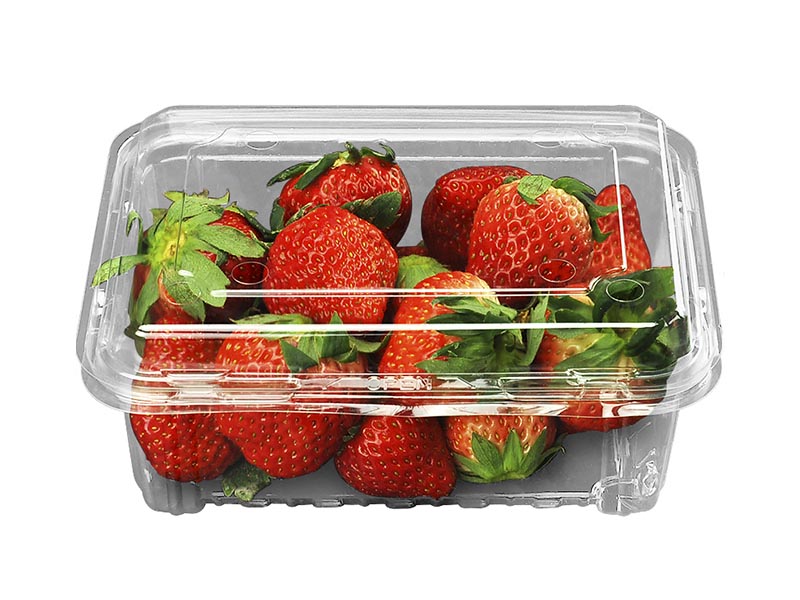

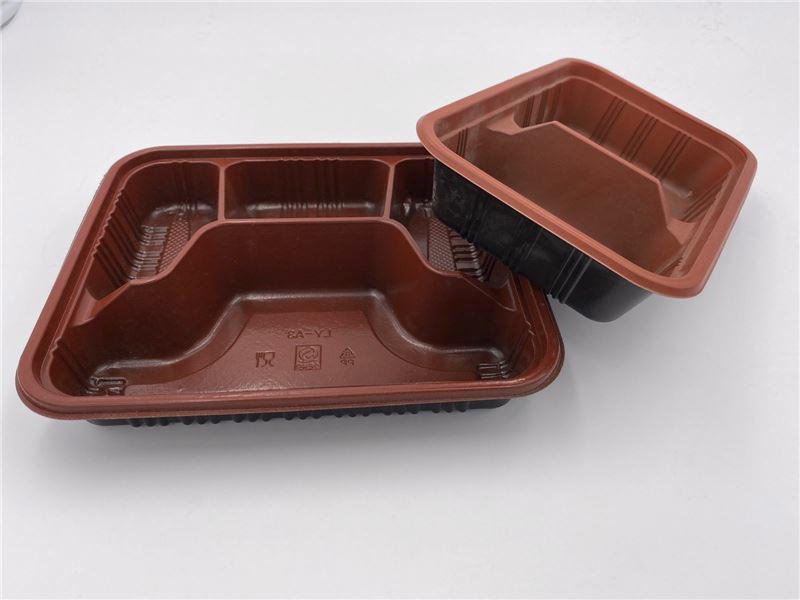

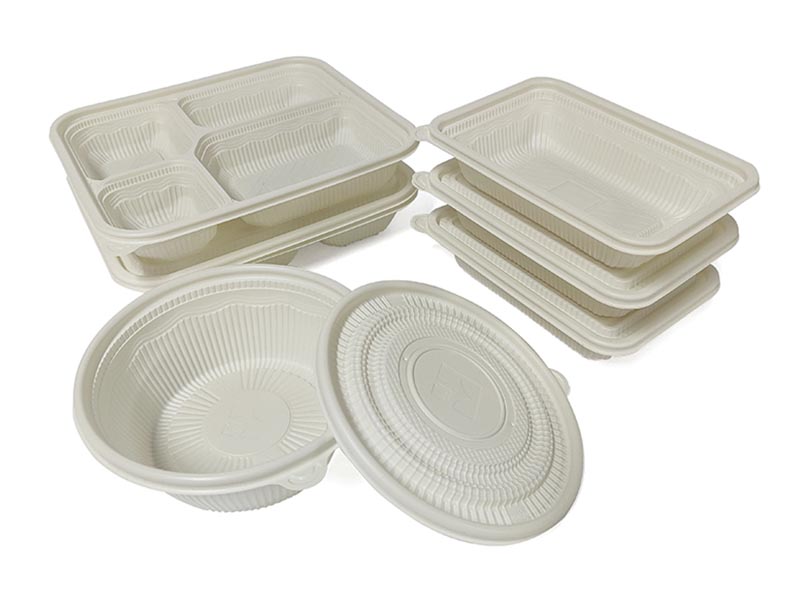

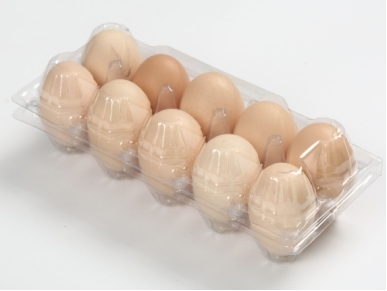

Tsis siv neeg yas thermoforming tshuab yog tsim los ntawm ntau hom yas ntim (qe tais, ntim txiv hmab txiv ntoo, ntim khoom noj, ntim ntim, thiab lwm yam) nrog cov ntawv thermoplastic, xws li PS, PET, HIPS, PP, PLA, thiab lwm yam.
SUMMARY OF Plastic Food Container Making Machine
Kab kos duab
Yas Thermoforming Tshuab Technical Parameter
Hom | HLO 01-6040 | HLO 01-7860 |
Max.Forming Area | 600 x 400 | 7 80x600 |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |

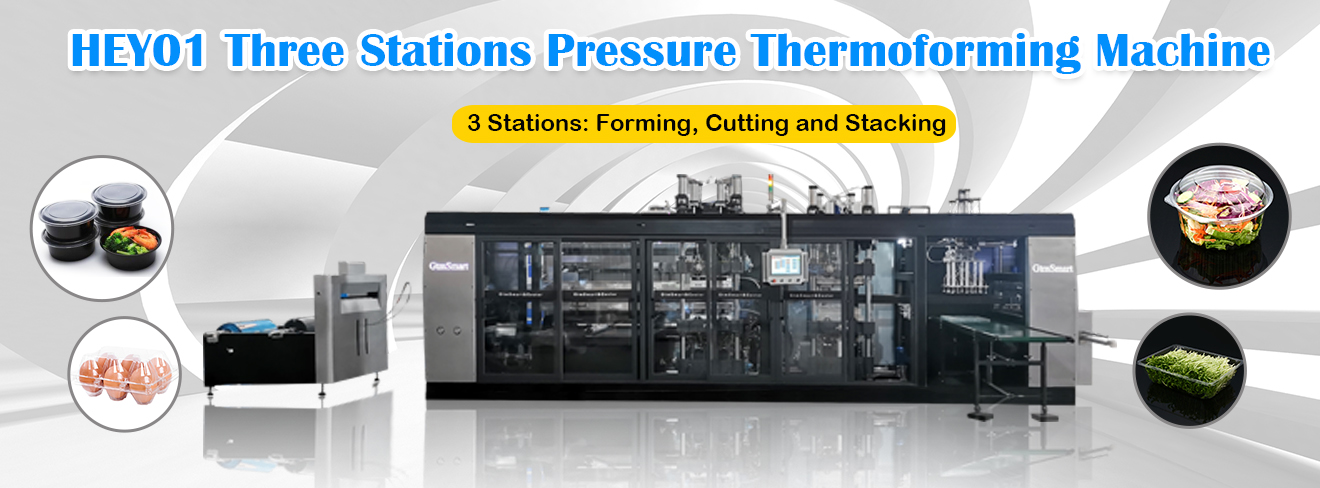

Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70 KW / H | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / h | |
Txias System | Dej Txias | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
NTAUB NTAWV
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog lub tshuab muaj ntau yam thiab siv tau zoo tsim kom sai thiab yooj yim tsim cov thawv ntim khoom noj khoom haus.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum & qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse kub tswj qhov system, uas muaj qhov siab tshaj plaws, qhov kub thiab txias, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Kev siv hluav taws xob tsawg (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav pwm pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
