Yas khob Ua tshuab
Kev tshaj lij chaw tsim khoom ntawm cov tshuab thermoforming.
Lus
Kev tshaj lij chaw tsim khoom ntawm cov tshuab thermoforming.
Customized Kub Yas Ice Cream Cup Biodegradable Cups Ua Tshuab Piv nrog cov khoom zoo sib xws ntawm lub khw, nws muaj qhov zoo sib xws ntawm kev ua tau zoo, zoo, zoo li qub, thiab lwm yam, thiab nyiam lub koob npe nrov hauv kev ua lag luam.GtmSmart summarizes lub defects yav dhau los cov khoom, thiab txuas ntxiv txhim kho lawv. Cov lus qhia tshwj xeeb ntawm Customized Kub Yas Ice Cream Khob Biodegradable Cups Ua Tshuab tuaj yeem kho raws li koj xav tau.
Tom qab xyoo ntawm kev loj hlob, peb tau sau cov peev txheej kev txawj ntse. Peb tau qhia cov neeg ua haujlwm txawj ntse thiab txhim kho peb cov thev naus laus zis.In the field(s) of Plastic Thermoforming Machine, Customized Hot Yas Ice Cream Cup Biodegradable Cups Making Machine yog tshwj xeeb tshaj yog muaj txiaj ntsig.

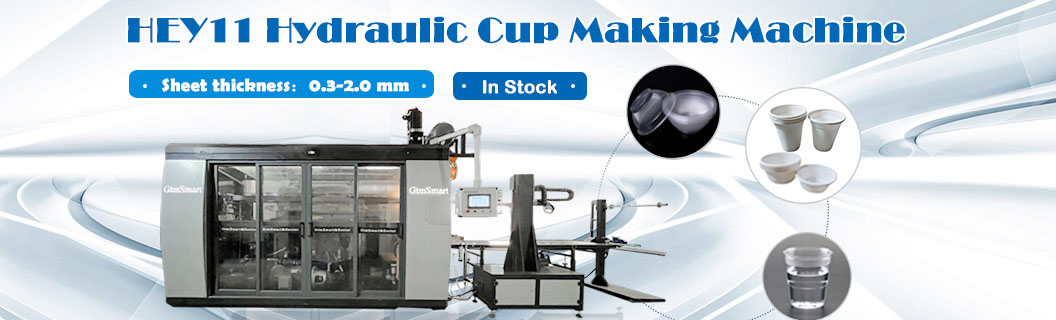

Yas khob Ua Tshuab Daim Ntawv Thov
Siv hydraulic system thiab hluav taws xob technology tswj rau servo stretching. Nws yog tus nqi siab piv tshuab uas tau tsim los ntawm cov neeg siv khoom lag luam xav tau.Lub tshuab tag nrho yog tswj hwm los ntawm hydraulic thiab servo, nrog inverter noj, hydraulic tsav system, servo stretching, cov no ua rau nws muaj kev ruaj khov thiab ua tiav cov khoom zoo.
Biodegradable Cups Ua Tshuab yog tsim los ntawm ntau hom yas ntim khoom (khoom pov tseg, khob haus, Jelly khob, tais zaub mov thiab lwm yam) nrog cov ntawv thermoplastic, xws li PP, PET, PS, PLA thiab lwm yam.
Yas khob Ua Tshuab Technical Specifications
Qauv | HLO 11-6835 | HLO 11-7842 |
Max.Forming cheeb tsam (mm2) | 680 * 350 hli | 7 80x420 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.3-2.0 | |
Max. Qhov tob (mm) | 180 | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Pwm Stroke (mm) | 250 | |
Ntev ntawm lub tshuab cua sov (mm) | 3 010 | |
Ntev ntawm lub tshuab cua sov (mm) | 2760 ib | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 25 | |
Qhov tseeb ntawm Sheet Transport (mm) | 0.15 | |
Fais fab mov | 380V 50Hz 3 theem 4 xaim | |
Lub zog cua sov (kw) | 135 | |
Tag nrho lub zog (kw) | 165 | |
Tshuab Dimension (mm) | 5290 * 2100 * 3480 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 9.5 ib | |
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog ntau yam thiab siv tau lub tshuab tsim los sai thiab yooj yim tsim cov khoom noj khoom haus clamshell.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 | |
Daim ntawv Carrier Dimension (mm) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Tsiaj Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum& qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse tswj qhov kub thiab txias, uas muaj qhov ua tau zoo, qhov ntsuas kub tsis sib xws, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Tsawg zog siv hluav taws xob (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav cov pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
