Kev tshaj lij chaw tsim khoom ntawm cov tshuab thermoforming.
Tsav los ntawm kev sib tw ua lag luam, peb tau txhim kho peb cov thev naus laus zis thiab tau paub txog kev siv tshuab los tsim cov khoom. Nws tau raug pov thawj tias cov khoom siv tuaj yeem siv rau hauv daim ntawv thov daim teb (s) ntawm Yas Thermoforming Machine thiab muaj kev cia siab rau daim ntawv thov dav.

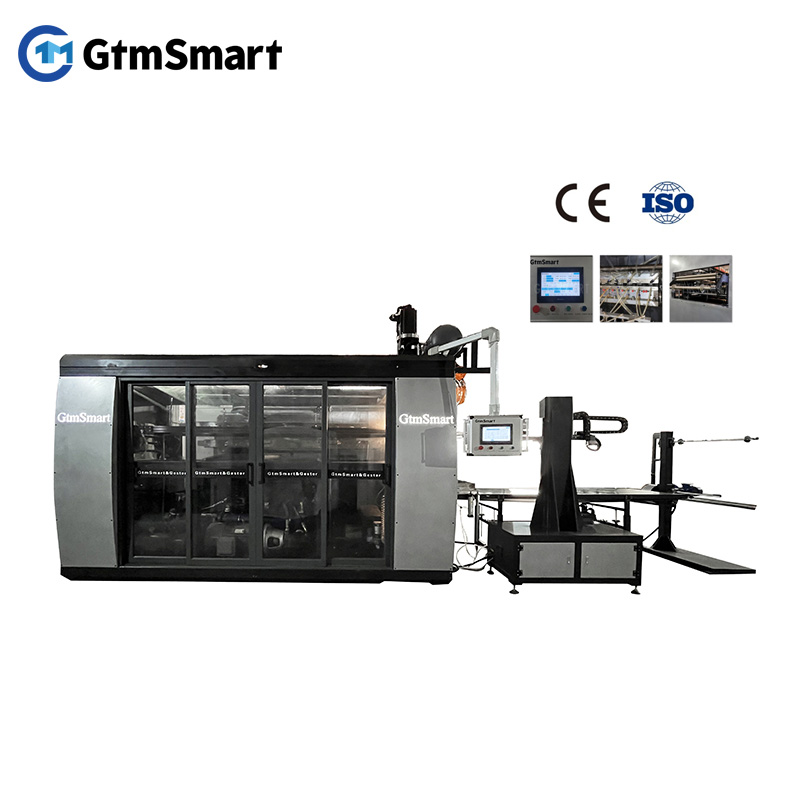

Plastic tshuaj yej khob khob ua tshuab ntawm Zoo Lag luam wholesale nqe
A. Kev thov khoom
Yas khob Thermoforming Tshuab feem ntau yog tsim los ntawm ntau yam yas ntim nrog tsim qhov tob ≤180mm ( jelly khob, haus khob, ntim ntim, thiab lwm yam) nrog thermoplastic los xij, xws li PP, PET, PE, PS, HIPS, PLA, thiab lwm yam.
B. Khoom Feature
1. Siv hydraulic system thiab hluav taws xob technology tswj rau servo stretching. Nws yog tus nqi siab piv tshuab uas tau tsim los ntawm cov neeg siv khoom lag luam xav tau.
2. Lub tshuab tag nrho yog tswj los ntawm hydraulic thiab servo, nrog inverter noj, hydraulic tsav system, servo stretching, cov no ua rau nws muaj kev ruaj khov thiab ua tiav cov khoom zoo.
C. Khoom Parameter
Qauv | HLO 11-6835 | HLO 11-7842 |
Max.Forming cheeb tsam (mm2) | 680 * 350 hli | 7 80x420 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.3-2.0 | |
Max. Qhov tob (mm) | 180 | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Pwm Stroke (mm) | 250 | |
Ntev ntawm lub tshuab cua sov (mm) | 3 010 | |
Ntev ntawm lub tshuab cua sov (mm) | 2760 ib | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 25 | |
Qhov tseeb ntawm Sheet Transport (mm) | 0.15 | |
Fais fab mov | 380V 50Hz 3 theem 4 xaim | |
Lub zog cua sov (kw) | 135 | |
Tag nrho lub zog (kw) | 165 | |
Tshuab Dimension (mm) | 5290 * 2100 * 3480 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 9.5 ib | |
D. Khoom Qhia
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog lub tshuab muaj ntau yam thiab siv tau zoo tsim kom sai thiab yooj yim tsim cov thawv ntim khoom noj khoom haus.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 | |
Daim ntawv Carrier Dimension (mm) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum& qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse tswj qhov kub thiab txias, uas muaj qhov ua tau zoo, qhov ntsuas kub tsis sib xws, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Tsawg zog siv hluav taws xob (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav cov pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
