Tshaj tawm qhov zoo tshaj plaws ntawm Yas khob Thermoforming Tshuab rau ntau yam kev xav tau los ntawm cov tuam ntxhab thiab cov muag khoom tshwj xeeb. Peb qhov ntau yog tsim los ntawm cov kws tshaj lij thiab engineering ua cov khoom kom tau raws li cov qauv zoo tshaj plaws thoob ntiaj teb.Our collection yog mus txog cov qauv zoo tshaj plaws muab cov kev daws teeb meem ntawm kev lag luam.

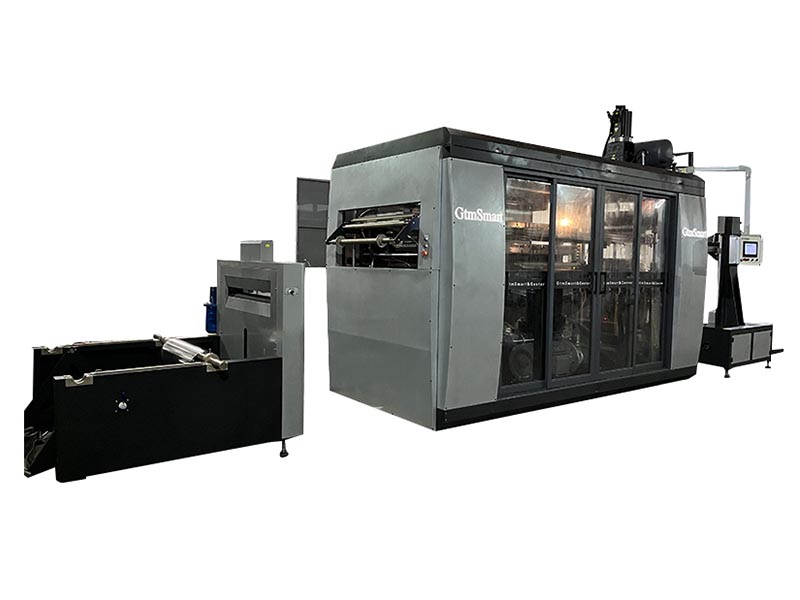

Latest Disposable Ice Cream Cup Thermaforming Making Machine Rau Kev Ua Yas Khob
A. Yas khob Thermoforming Tshuab Daim Ntawv Thov
Yas khob Thermoforming Tshuab feem ntau yog tsim los ntawm ntau yam yas ntim nrog tsim qhov tob ≤180mm ( jelly khob, haus khob, ntim ntim, thiab lwm yam) nrog thermoplastic los xij, xws li PP, PET, PE, PS, HIPS, PLA, thiab lwm yam.
B.Plastic khob Thermoforming Tshuab Feature
C. Yas khob Thermoforming Tshuab Parameter
Qauv | HLO 11-6835 | HLO 11-7842 |
Max.Forming cheeb tsam (mm2) | 680 * 350 hli | 7 80x420 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.3-2.0 | |
Max. Qhov tob (mm) | 180 | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Pwm Stroke (mm) | 250 | |
Length ntawm lub rhaub (mm) | 3 010 | |
Qhov ntev ntawm lub tshuab cua sov (mm) | 2760 ib | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 25 | |
Qhov tseeb ntawm Sheet Transport (mm) | 0.15 | |
Fais fab mov | 380V 50Hz 3 theem 4 xaim | |
Lub zog cua sov (kw) | 135 | |
Tag nrho lub zog (kw) | 165 | |
Tshuab Dimension (mm) | 5290 * 2100 * 3480 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 9.5 ib | |

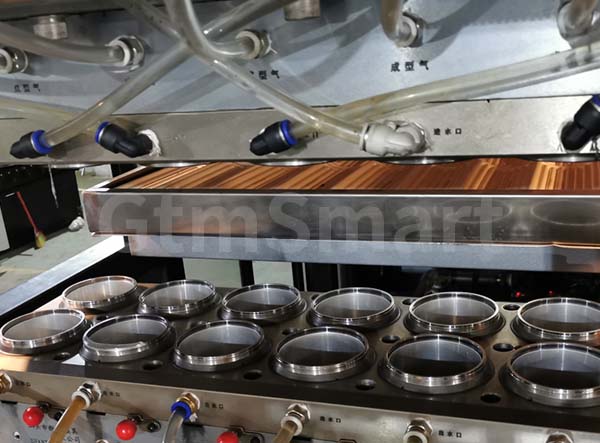

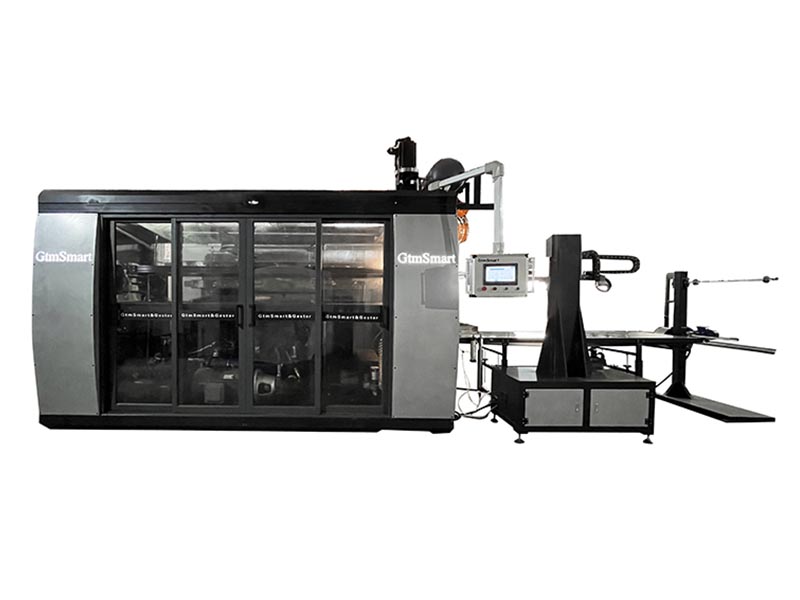

C. Ice Cream Yas Khob Ua Tshuab Feature
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog lub tshuab muaj ntau yam thiab siv tau zoo tsim kom sai thiab yooj yim tsim cov thawv ntim khoom noj khoom haus.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 | |
Daim ntawv Carrier Dimension (mm) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho

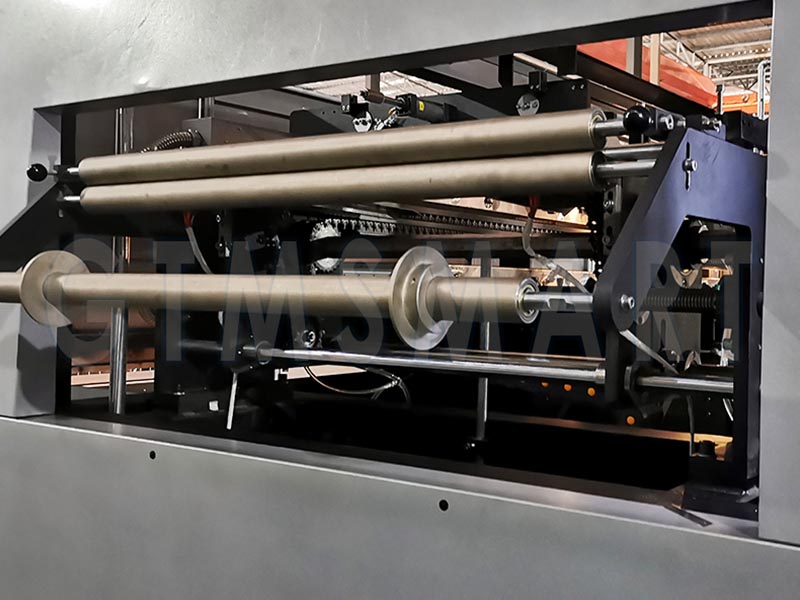

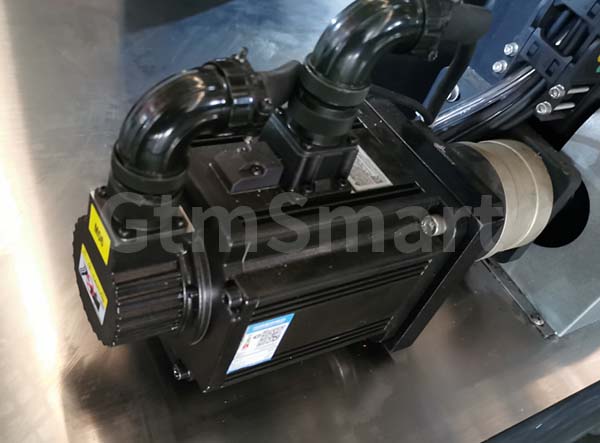

3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum& qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse tswj qhov kub thiab txias, uas muaj qhov ua tau zoo, qhov ntsuas kub tsis sib xws, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Tsawg zog siv hluav taws xob (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav cov pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
