Yas khob Thermoforming Tshuab Chaw tsim tshuaj paus Hoobkas piv nrog cov khoom zoo sib xws ntawm lub khw, nws muaj incomparable zoo zoo nyob rau hauv cov nqe lus ntawm kev ua tau zoo, zoo, tsos, thiab lwm yam., thiab nyiam lub koob npe nrov nyob rau hauv lub lag luam.GtmSmart summarizes qhov tsis xws luag ntawm cov khoom yav dhau los, thiab tsis tu ncua txhim kho lawv. Cov lus qhia tshwj xeeb ntawm Yas Khob Thermoforming Tshuab Chaw Tsim Khoom Hoobkas tuaj yeem kho raws li koj xav tau.

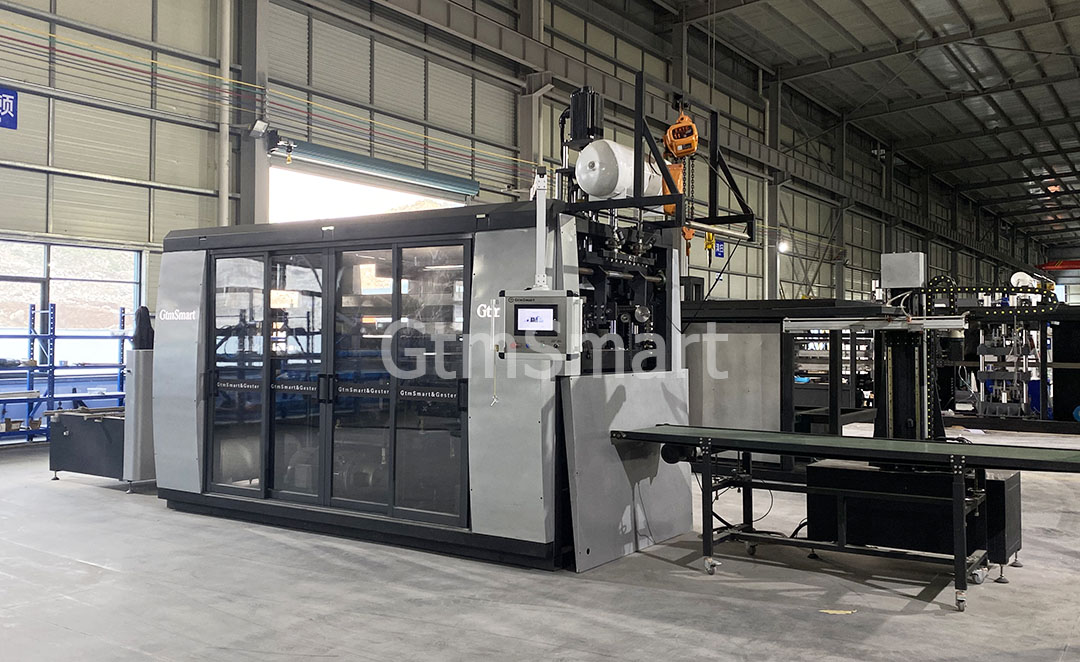

Lub khob yas thermoforming tshuab txais cov thermoforming thiab servo tswj technologies, combining peb xyoo lawm ntawm machinery manufacturing kev txawj ntse kom xa ib tug tshiab tiam ntawm cov khoom siv zog. Nws tau txaistag nrho servo-tswj tshuab nrog rau kev pub mis, tsav tsheb, thiab ncab cov txheej txheem, xyuas kom meej qhov chaw thiab zoo ib yam molding zoo.
Lub khob yas ua tshuab muaj qhov zoo ntawm kev ua haujlwm ruaj khov, tsis tshua muaj suab nrov, txuag hluav taws xob thiab kev tiv thaiv ib puag ncig, thiab qib siab ntawm cov khoom tiav, uas feem ntau yog sib xws nrogPP, PET, PE, PS, HIPS, PLA thiab lwm cov ntawv yas thiab zoo molded los tsim ntau hom jelly khob, khob haus, ntim thawv thiab lwm cov thawv yas.
Kev tsim, txiav, thiab stacking yog peb theem tseem ceeb hauv kev tsim cov yas dej iav tshuab.
Kev sib sau: Cov txheej txheem txheej txheem yuav tsum ua kom sov ib daim ntawv yas mus rau qhov kub thiab txias thiab tom qab ntawd ua nws rau hauv cov duab uas xav tau siv pwm thiab siv lub zog thiab lub tshuab nqus tsev. Cov ntawv yas yog pub los ntawm lub tshuab thiab muab tso rau hauv qhov chaw preheating kom nws soften. Tom qab ntawd nws raug xa mus rau qhov chaw tsim khoom uas cov pwm tsim cov ntawv rau hauv lub khob. Cov pwm yog txias, thiab lub khob tawm ntawm pwm, thiab xa mus rau theem tom ntej.
Txiav: Cov theem txiav yog tshem tawm cov yas ntau dhau ntawm cov npoo ntawm lub khob. Cov khob raug thauj mus rau qhov chaw txiav txiav qhov chaw tuag lossis cov cuab yeej txiav tshem tawm cov yas ntau dhau ntawm lub khob cov npoo. Cov khob trimmed ces xa mus rau theem tom ntej.
Stacking: Cov theem stacking yuav muab cov khob ntim rau hauv pawg lossis ntim rau cov khoom xa tuaj. Cov khob ntim tau raug thauj mus rau qhov chaw ntim khoom lossis chaw ntim khoom uas lawv tau ntim lossis ntim raws li cov neeg siv khoom xav tau.
Tsis siv neeg yas khob ua tshuab Khoom Parameter
Qauv | HLO 11-6835 | HLO 11-7842 |
Max.Forming cheeb tsam (mm2) | 680 * 350 hli | 7 80x420 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Ntawv dav (mm) | 350-810 : kuv | |
Phaj Thickness (mm) | 0.3-2.0 | |
Max. Qhov tob (mm) | 180 | |
Max. Dia. Los ntawm Sheet Roll (mm) | 800 | |
Pwm Stroke (mm) | 250 | |
Length ntawm lub rhaub (mm) | 3 010 | |
Qhov ntev ntawm lub tshuab cua sov (mm) | 2760 ib | |
Max. Pwm Kaw Force (T) | 50 | |
Ceev (lub voj voog / min) | Max 25 | |
Qhov tseeb ntawm Sheet Transport (mm) | 0.15 | |
Fais fab mov | 380V 50Hz 3 theem 4 xaim | |
Lub zog cua sov (kw) | 135 | |
Tag nrho lub zog (kw) | 165 | |
Tshuab Dimension (mm) | 5290 * 2100 * 3480 hli | |
Sheet Carrier Dimension (hli) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 9.5 ib | |
Khoom Paub meej
Tus Tsiaj Thermoforming Tshuab Txiv Hmab Txiv Ntoo Clamshell Food Container Making Machine yog ntau yam thiab siv tau lub tshuab tsim los sai thiab yooj yim tsim cov khoom noj khoom haus clamshell.This Food Container Making Machine yog tsim rau PET, PVC, PS, PLA cov ntaub ntawv.
Technical Parameter
Qauv | HLO 01-604 | HLO 01-7860 |
|---|---|---|
Max.Forming Area | 600 x 400 | 7 80x60 |
Chaw Ua Haujlwm | Forming, Txiav, Stacking | |
Khoom siv tau | PS, PET, HIPS, PP, PLA, thiab lwm yam | |
Daim ntawv dav (mm) | 350-81 : kuv | |
Phaj Thickness (mm) | 0.2-1.5 hli | |
Max. Dia. Los ntawm Sheet Roll (mm) | 80 | |
Txoj Kev Mould Stroke (mm) | 120 rau pwm thiab down pwm | |
Kev siv fais fab | 60-70KW / teev | |
Max. Qhov tob (mm) | 100 | |
Txiav Pwm Stroke (mm) | 120 rau pwm thiab down pwm | |
Max. Txiav cheeb tsam | 600 x 400 | 7 80x600 |
Max. Pwm Kaw Force (T) | 5 | |
Ceev (lub voj voog / min) | Max 30 | |
Max. Muaj peev xwm ntawm lub tshuab nqus tsev twj | 200 m³ / feeb | |
Txias System | Dej Txias | |
Fais fab mov | 380V 50Hz 3 fas 4v | |
Max. Lub zog cua sov (kw) | 140 | |
Max. Lub zog ntawm tag nrho lub tshuab (kw) | 160 | |
Tshuab Dimension (mm) | 9000 * 2200 * 269 | |
Daim ntawv Carrier Dimension (mm) | 2100 * 1800 * 1550 hli | |
Qhov hnyav tag nrho lub tshuab (T) | 12.5 Nws |
Feature ntawm Pet Thermoforming Tshuab
1. Mechanical, pneumatic thiab hluav taws xob ua ke, tag nrho cov kev ua haujlwm yog tswj los ntawm PLC. Kov npo ua rau kev ua haujlwm yooj yim thiab yooj yim.
2. Max.Forming Area: 600x400, 780x600mm, tuaj yeem kho
3. Servo lub cev muaj zog pub, pub ntev tuaj yeem hloov kho tsis tau. Kev kub ceev thiab raug.
4. Saum& qis cua sov, plaub ntu cua sov.
5. Rhaub nrog kev txawj ntse tswj qhov kub thiab txias, uas muaj qhov ua tau zoo, qhov ntsuas kub tsis sib xws, yuav tsis cuam tshuam los ntawm cov hluav taws xob sab nraud. Tsawg zog siv hluav taws xob (lub zog txuag 15%), xyuas kom lub neej ntev ntawm cov cua sov.
6. Kev tsim thiab txiav cov pwm qhib thiab kaw tswj los ntawm servo lub cev muaj zog, cov khoom lag luam tau suav.
7. Pub dav tuaj yeem ua synchronously lossis kho nws tus kheej hauv txoj kev hluav taws xob.
Peb ua raws li ISO9001 kev tswj hwm thiab nruj me ntsis saib xyuas tag nrho cov txheej txheem tsim khoom. Txhua tus neeg ua haujlwm yuav tsum tau txais kev cob qhia ua haujlwm ua ntej ua haujlwm.
Txhua tus txheej txheem ua thiab sib dhos muaj cov qauv kev tshawb fawb nruj.
